M8 DESCRIPTION

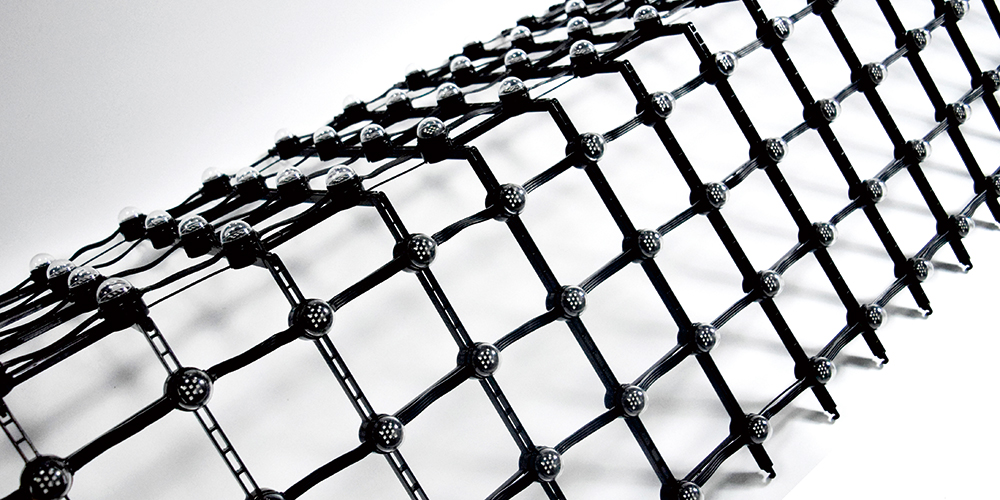

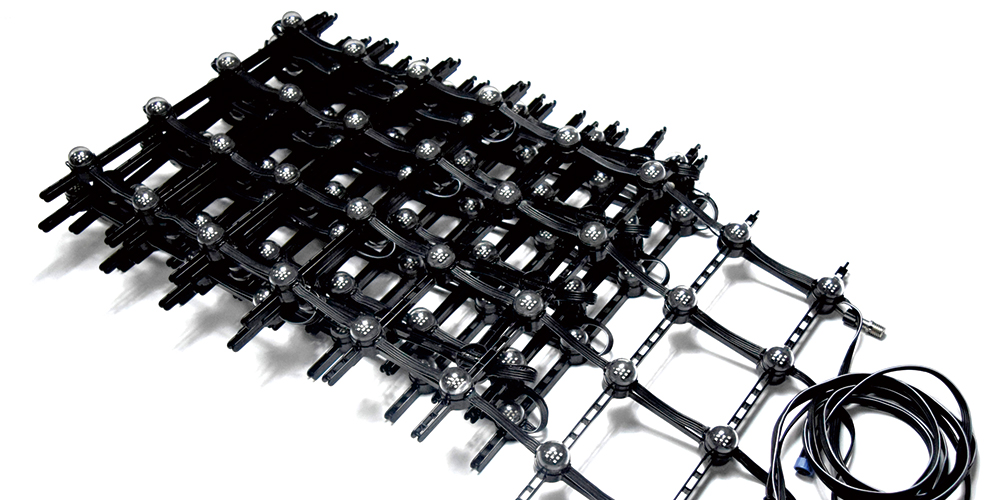

  • Ultra flexible, easy to form a flat screen or curved to match with irregular shaped building facade, panel size and panel color can be customized.
  • High transparency rate maximizes the natural light get inside of the building, also ensuring the screen has great ventilation and wind-resistance function.
  • Fast inter-panel locks make installation quick and easy, especially for a large-sized screen.
  • Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure.

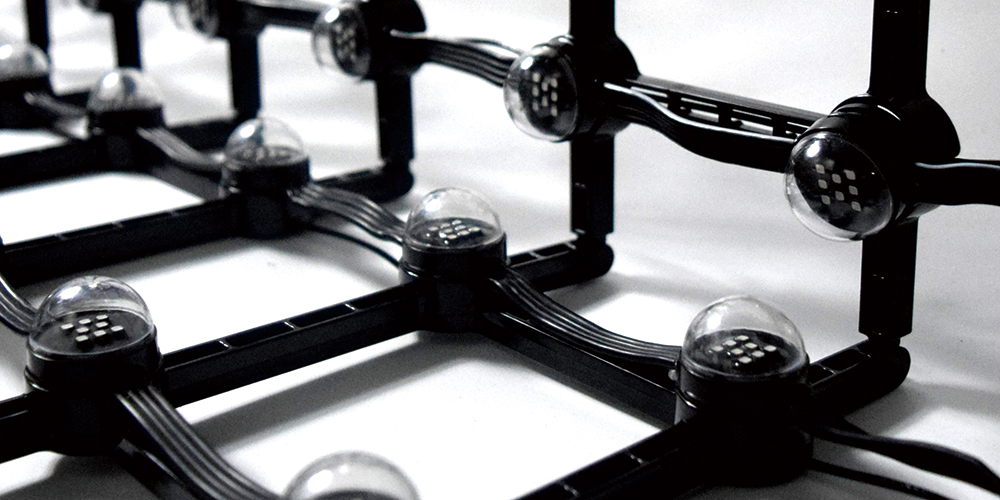

  • Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient.

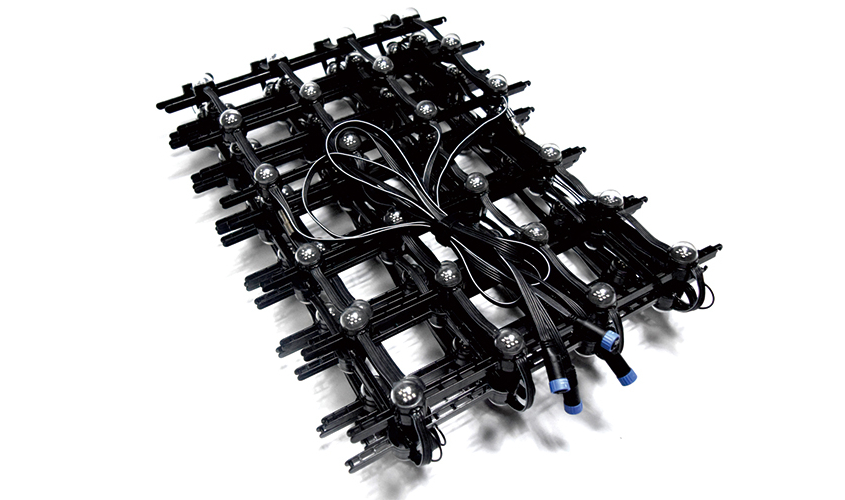

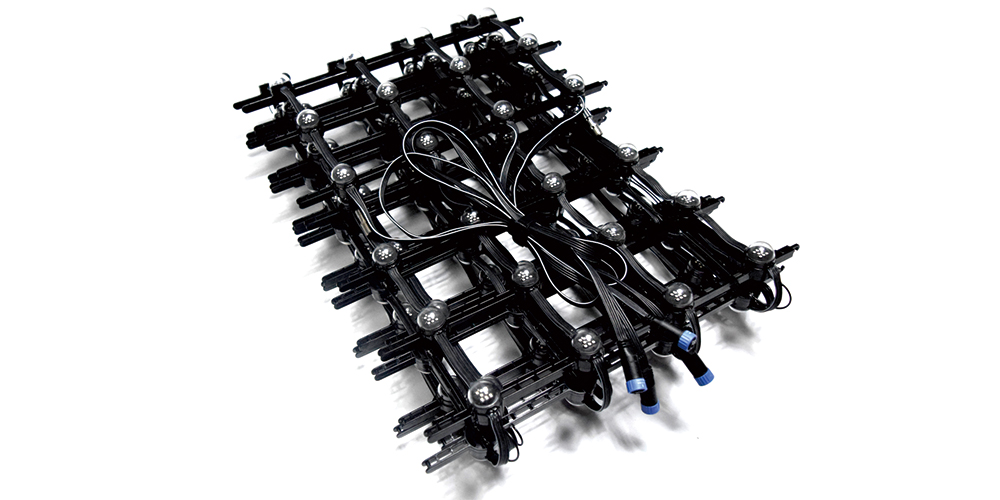

  • Head and tail of the panel with waterproof connectors.

SPECIFICATIONS

Pixel Pitch H-3.9mm ; V-7.8mm H-7.8mm 10.42mm 15.625mm
Brightness 5500nit 5500nit 5500nit 5500nit
Pixel Density 32768dots/㎡ 16384dots/㎡ 9216 dots/㎡ 4096 dots/㎡
LED Configuration SMD3510 SMD3510 SMD3510 SMD3510
Scan mode 8 4 2 2
Panel Size 1000*1000mm （customizing）
Cabinet Material Aluminum Aluminum Aluminum Aluminum
Weight 10kg/㎡ 10kg/㎡ 10kg/㎡ 10kg/㎡
Transparency 68% 70% 76% 88%
Refresh Rate ≧1920Hz ≧1920Hz ≧1920Hz ≧1920Hz
Max. Power Consumption 800W/㎡ 800W/㎡ 700W/㎡ 600W/㎡
Ave. Power Consumption 250W/㎡ 250W/㎡ 250W/㎡ 250W/㎡
Viewing Angle 120° 160° 160° 160°
Maintenance Front/Rear
Operating Voltage DC 5V
Operating Temperature/ -10～40℃
Operating Humidity 10%-90%
Input Voltage AC 100V～240V
